At Oryvia Refractories, we offer Ceramic Fiber Modules for high-temperature industrial insulation and furnace lining applications. These modular insulation products are designed to provide an organized, lightweight and thermally efficient lining solution for suitable industrial heating equipment. Ceramic fiber modules are manufactured from refractory ceramic fiber blanket material that is folded or stacked, compressed and assembled into rectangular modules with an appropriate anchoring arrangement.
Our ceramic fiber insulation solutions are intended for industrial environments where thermal insulation, reduced heat storage and efficient furnace lining arrangements are important considerations. Their modular construction makes them suitable for applications requiring a structured insulation lining rather than conventional loose or individually layered blanket installation.
Ceramic Fiber Modules combine the thermal insulation characteristics of refractory ceramic fibre with a pre-engineered modular structure. The compressed fibre arrangement provides a compact insulation unit, while the folded or stacked construction helps create an organized lining surface.
We offer ceramic fibre insulation solutions for consideration in suitable high-temperature industrial equipment. Ceramic Fiber Modules are commonly used in the following application areas, subject to the correct grade, temperature classification and engineering requirements:
Ceramic Fiber Modules can be designed in folded or stacked arrangements depending on the lining design. Their dimensions, thickness, density, fibre orientation and anchoring configuration must be selected according to the intended installation.
Important purchasing details include the required module length, width, thickness, hot-face orientation, fixing arrangement and furnace shell design. Metallic anchoring material must also be selected with consideration for its location and exposure to operating temperatures.
Share your engineering drawings or module dimensional requirements with our team so that we can discuss the appropriate product configuration. Actual available sizes and fixing arrangements should be confirmed before ordering.
Looking for Ceramic Fiber Modules for an industrial furnace, kiln or thermal processing project? Contact our team with your required temperature classification, module dimensions, density, anchoring arrangement and purchase quantity.
We welcome enquiries from international importers, distributors, procurement managers, furnace manufacturers and industrial buyers. Share your technical requirements and application details with us to discuss suitable product configurations and request a quotation.
Contact Oryvia Refractories to discuss your Ceramic Fiber Module requirements.

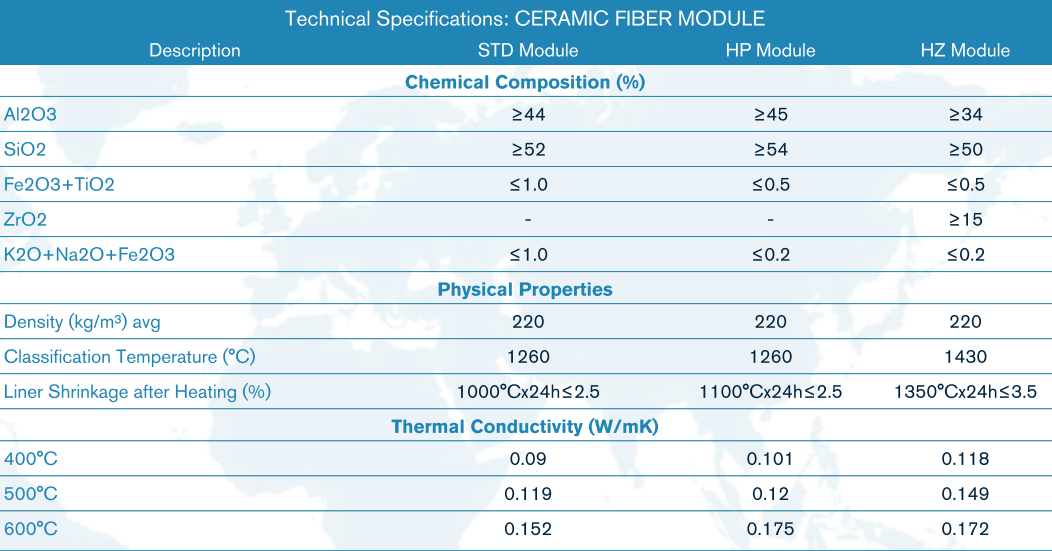

| Description | STD Module | HP Module | HZ Module |
|---|---|---|---|
| Chemical Composition (%) | |||
| Al2O3 | ≥44 | ≥45 | ≥34 |
| SiO2 | ≥52 | ≥54 | ≥50 |
| Fe2O3+TiO2 | ≤1.0 | ≤0.5 | ≤0.5 |
| ZrO2 | - | - | ≥15 |
| K2O+Na2O+Fe2O3 | ≤1.0 | ≤0.2 | ≤0.2 |
| Physical Properties | |||
| Density (kg/m³) avg | 220 | 220 | 220 |
| Classification Temperature (°C) | 1260 | 1260 | 1430 |
| Liner Shrinkage after Heating (%) | 1000°Cx24h≤2.5 | 1100°Cx24h≤2.5 | 1350°Cx24h≤3.5 |
| Thermal Conductivity (W/mK) | |||
| 400°C | 0.09 | 0.101 | 0.118 |
| 500°C | 0.119 | 0.12 | 0.149 |
| 600°C | 0.152 | 0.175 | 0.172 |
